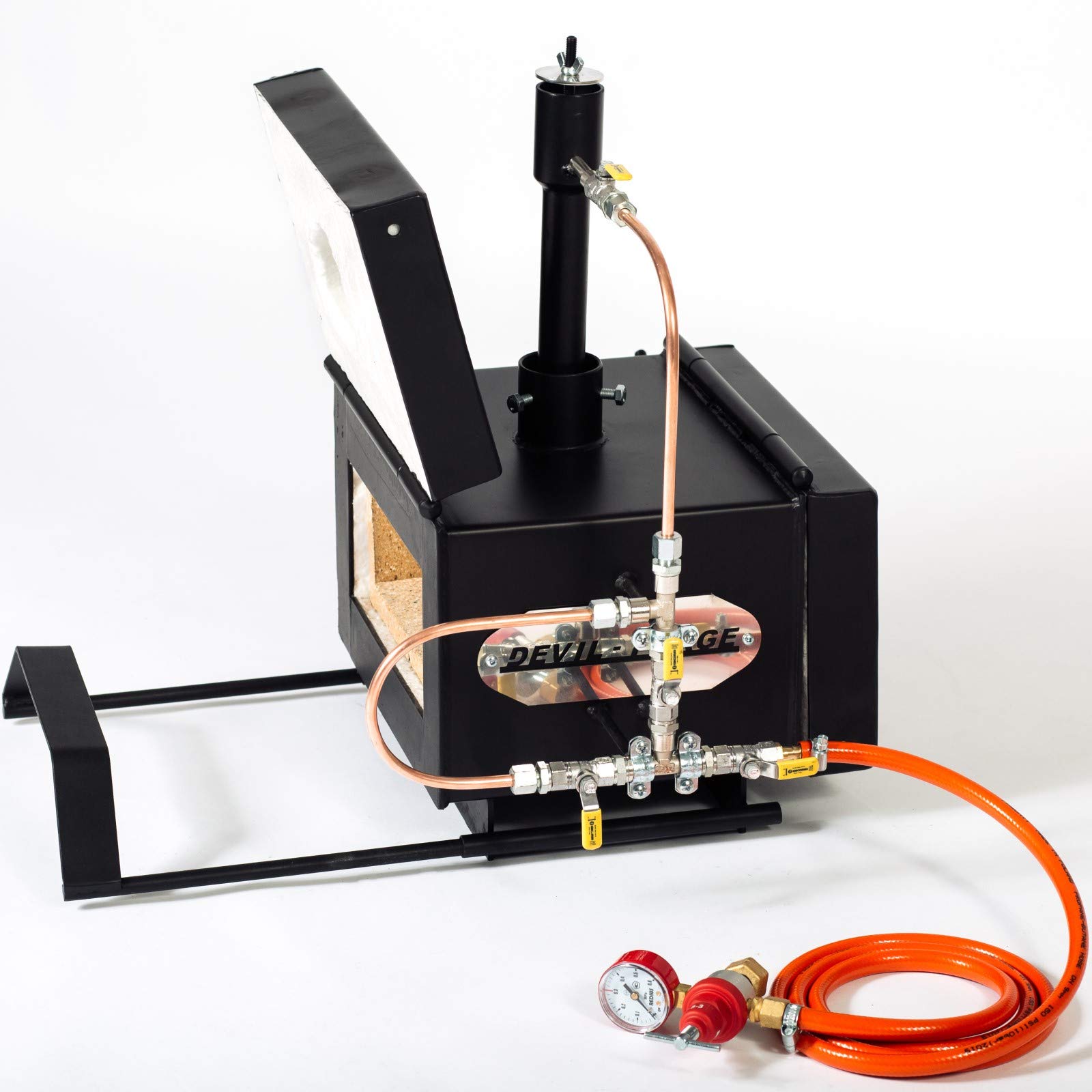

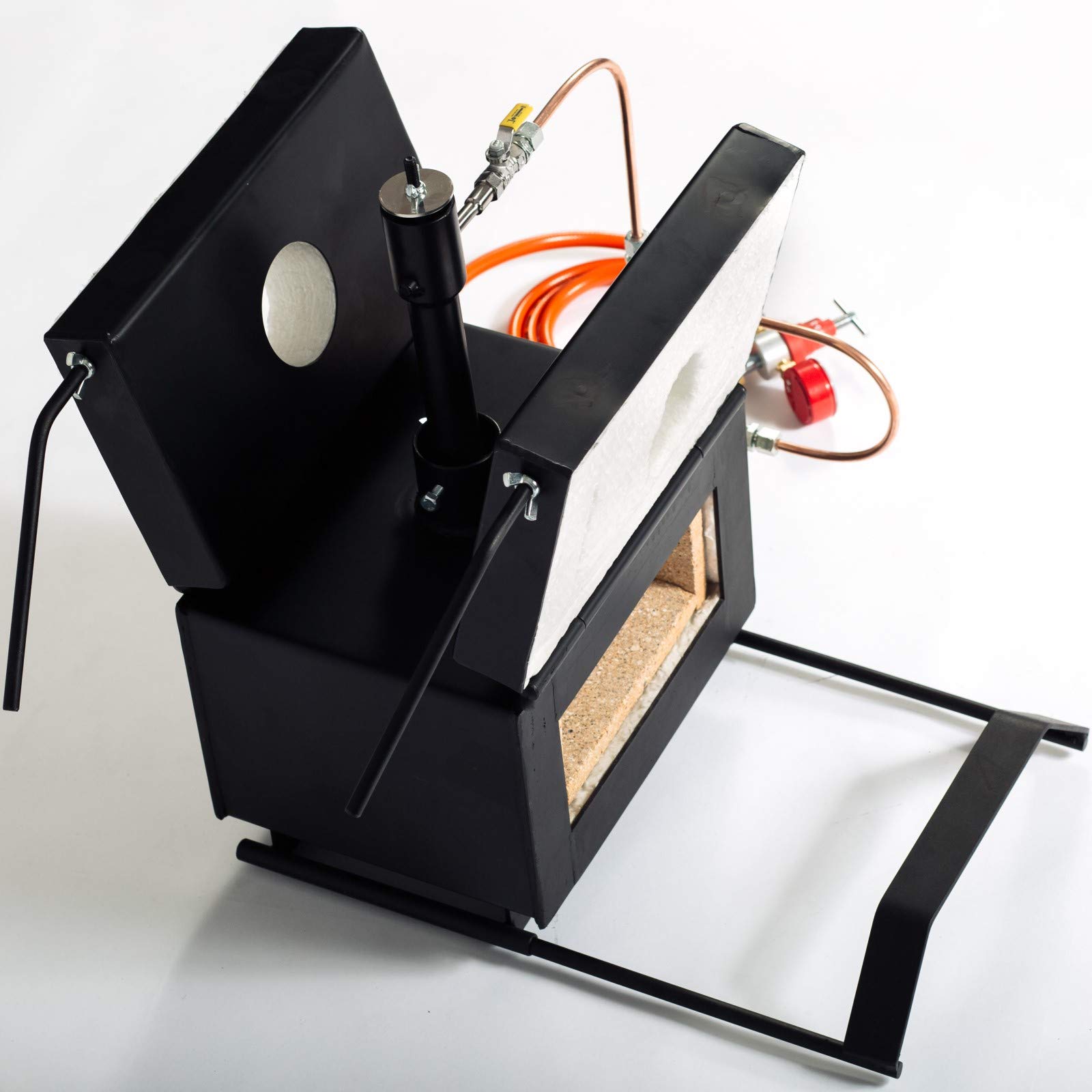

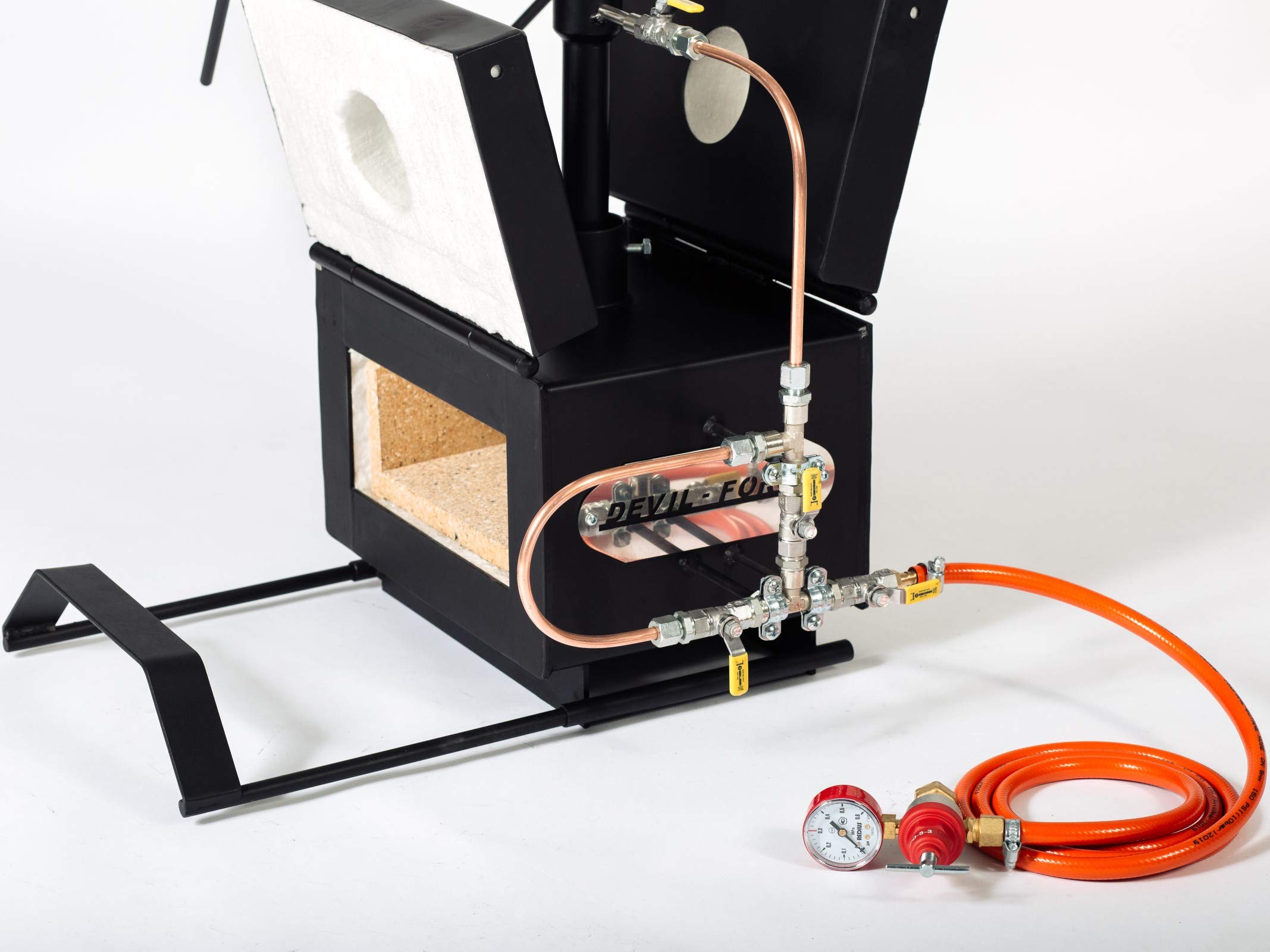

Specifications: Model: The PREMIUM Gas Propane Forge DFPROFK1 is a professional forge. It is equipped with a powerful DFC Burner with an output power of 180,000 BTU and features 2 doors. It is specifically designed for blacksmiths, farriers, and knife makers. This forge boasts double 2'' insulation, with the bottom and sides made of firebricks, providing increased heat while reducing fuel consumption. It includes an extendable tool rest and a gas-saving system. Its compact construction allows for portability, making it easy to transport to any location. This forge can reach temperatures of 2500°F / 1370°CInterior Dimensions (WxHxD): 9.2” x 4” x 10” (230mm x 100mm x 250mm)Insulation: Double insulation. The interior of the forge is fully lined with 2” /50mm of ceramic blanket. The forge bottom and both sides are made of 20mm firebrick, providing superior strength and durabilityBurner: The Model – DFC (180,000 BTU) burner is powerful and efficient. Its nozzle design enhances longevity and efficiency. Constructed from 304 stainless steel, the nozzle has a diameter at the widest point 50mm. The gas burner features an adjustable air choke, which helps to regulate the air-propane mixture during combustion to achieve varying pressures and maximum temperature. Operating pressure ranges from 1 to 25 PSI. The burner includes a gas ball valve for on/off controlOur burners are designed to operate with: Butane, Propane, Butane + Propane Gas, and LPG. They are not compatible with Natural GasForge Body: Made of 16-gauge (1,5mm) steel, the shell is lightweightWeight: 46lb / 21kgMaximum Temperature: 2500°F / 1370°C. *Always use proper safety gear, including body, face, and eye protection, while operating at high temperaturesGas pressure regulator, gauge with Mpa monometer. Pressure Range is 0-0.6Mpa (0.1Mpa - 1Bar - 14.5PSI)Fitting: A gas regulator with a POL CGA-510 connection is included for the UNITED STATES. It works with a standard propane tankDelivery time to the USA is 5-8 business days Package includes: Gas Propane Forge model DFPROFK11 Burner model DFC (180.000 BTU)Gas saving systemFirebrickTongsHeat Resistant Gloves (glove appearance may vary)Gas pressure regulator, gauge with manometer6.5ft / 2m gas hose2 Clamps2 Door handlesRefractory rigidizer (powder)BrushUser manual THE INCLUDED REFRACTORY RIGIDIZER MUST BE APPLIED BEFORE USE. Applying it will provide extra strong protection and enhance the durability of the ceramic insulation Fitting Connection - POL CGA-510 fits for UNITED STATES, CANADA, SWEDEN, NORWAY, AUSTRALIA, NEW ZEALAND, ISRAEL Gas Propane Forge DFPROFK1 with 1 Burner, 2 Doors, Double insulation 2” Gas Propane Forge DFPROFK2 with 2 Burners, 2 Doors, Double insulation 2” Gas Propane Forge DFPROFK3 with 3 Burners, 2 Doors, Double insulation 2” Gas Propane Forge DFPROFLT with 2 Burners, 1 Door, Double insulation 2” Gas Propane Forge DFPROF3+1D/2” with 3 Burners, 1 Door, Double insulation 2” Gas Propane Forge DFPROF3+1D with 3 Burners, 2 Doors Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — 4.0 out of 5 stars 1 4.7 out of 5 stars 3 — 4.3 out of 5 stars 7 4.4 out of 5 stars 52 Price $549.00$549.00 $779.00$779.00 $978.00$978.00 $712.00$712.00 $484.00$484.00 $501.00$501.00 Model DFPROFK1 DFPROFK2 DFPROFK3 DFPROFLT DFPROF3+1D/2” DFPROF3+2D Interior Dimensions (WxHxD) 9.2” x 4” x 10” (230mm x 100mm x 250mm) 9.2” x 4” x 16” (230mm x 100mm x 400mm) 9.2” x 4” x 24” (230mm x 100mm x 600mm) 9.2” x 4” x 24” (230mm x 100mm x 600mm) 6" x 4.4" x 24" (150mm x 110mm x 600mm) 5.8“ x 5.8“ x 24“ (145mm x 145mm x 600mm) Weight 46lb / 21kg 62lb / 28kg 84lb / 38kg 77lb / 35kg 46lb / 21kg 32lb / 15kg The Forge Body is made of Steel 16 gauge (1.5mm) Steel 16 gauge (1.5mm) Steel 16 gauge (1.5mm) Steel 16 gauge (1.5mm) Steel 16 gauge (1.5mm) Steel 16 gauge (1.5mm) Burner 1 Burner model DFC (180.000 BTU) 2 Burners model DFC (360.000 BTU) 3 Burners model DFC (540.000 BTU) 2 Burners model DFC (360.000 BTU) 3 Burners model DFP (240.000 BTU) 3 Burners model DFP (240.000 BTU) Doors 2 2 2 1 1 2 Temperature 2500°F / 1370°C 2500°F / 1370°C 2500°F / 1370°C 2500°F / 1370°C 2500°F / 1370°C 2500°F / 1370°C Insulation 2” of the ceramic blanket. The bottom and both sides are made of firebrick 2” of the ceramic blanket. The bottom and both sides are made of firebrick 2” of the ceramic blanket. The bottom and both sides are made of firebrick 2” of the ceramic blanket. The bottom and both sides are made of firebrick 2” of the ceramic blanket. The bottom is made of firebrick 1” of the ceramic blanket. The bottom is made of firebrick Features Extendable Tool Rest, Gas Saving System Extendable Tool Rest, Gas Saving System Extendable Tool Rest, Gas Saving System 2 Connection Kits for using 2 propane tanks. Special Connection Kit for connecting 2 burners and using 1 propane tank no data no data Accessories included Tongs, Heat Resistant Gloves Tongs, Heat Resistant Gloves Tongs, Heat Resistant Gloves Tongs, Heat Resistant Gloves Tongs, Heat Resistant Gloves Tongs, Heat Resistant Gloves Explanation Table: Burner DFC BTU/Hr: burner powerPSI: gas pressure from the gas pressure regulator ATM: Gas pressure from gas pressure regulator (in Atmospheres). 1ATM - 1.01Bar - 14.5PSIPSI: Gas pressure from gas pressure regulator (in Pounds per square inch). 1PSI - 0.06ATM - 0.068BarBTU/Hr: British thermal unit per hour. 1 BTU/hr = 0.00029307107 kWLBS/Hr: Pounds per hour. 1 lbs = 0.45359237 kilogramsKg/Hr: Kilogram per hour. 1 kilogram = 2.20462262 lbsKW/Hr: Kilowatt per hour. 1 kW/Hr = 3412.142 BTU/Hr
