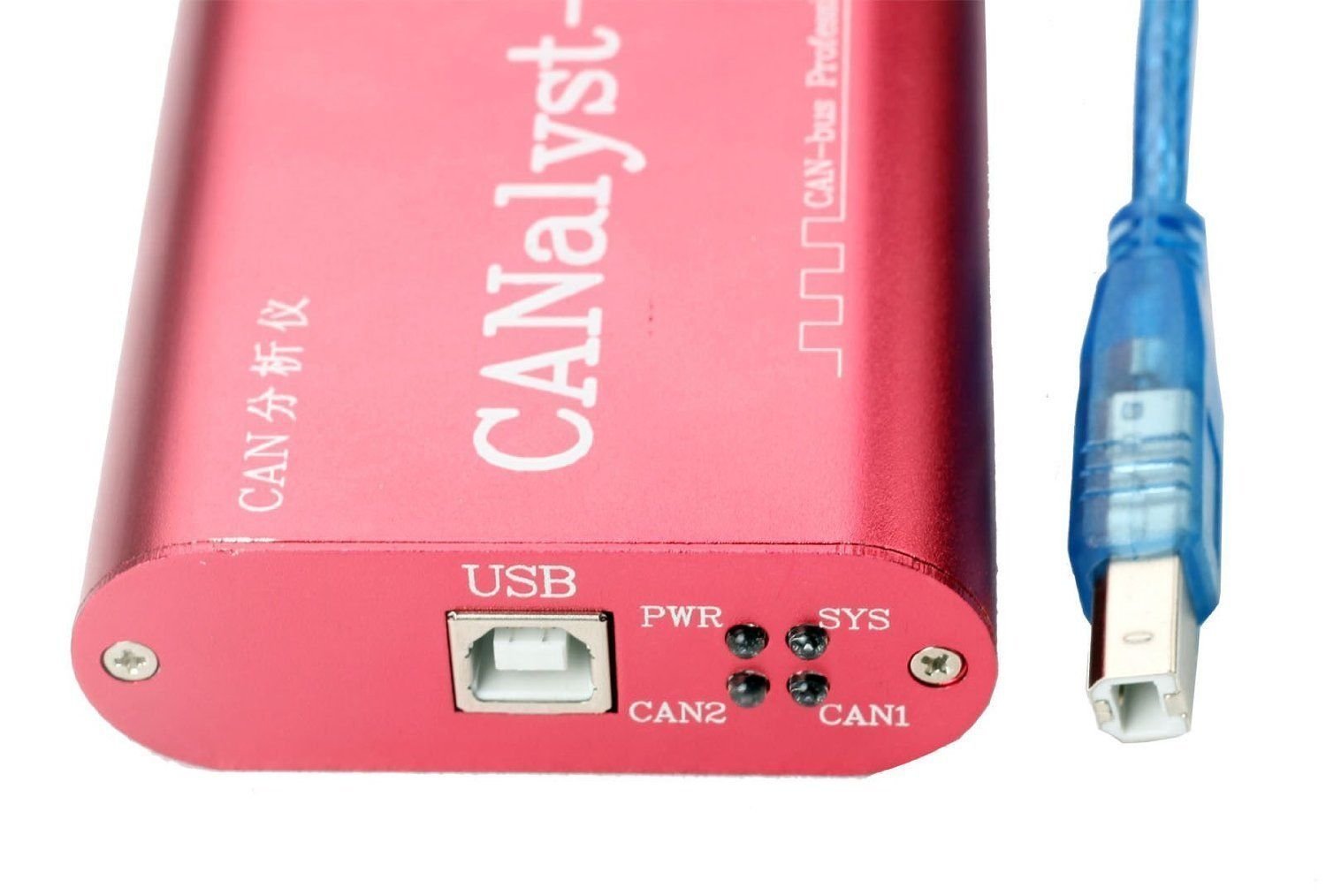

CANalyst-II USB to CAN Bus Analyzer Adapter - CAN-Bus Converter for Automotive Diagnostics & Industrial Control (Works with ZLGCANpro) - Perfect for Vehicle ECU Programming & CAN Network Testing

Specifications:Support CAN2.0A and 2.0B underlying protocol analysis,SAE J1939 protocol analysis, CANopen protocol analysis,DeviceNET protocol analysis,analysis iCAN protocol and user-defined protocol analysisPerformance and technical indicators:USB and CAN bus protocol conversionUSB-CAN-1(x)has a channel CAN interface;USB-CAN-2(x) with 2-channel CAN interfaceCANalyat-II analyzer has two CAN interfacesUSB interface supports USB2.0 compatible with USB1.1support CAN2.0A and CAN2.0B agreement,supports standard and extended framessupport bidirectional transmission,CAN transmit, CAN receiversupports data frame, remote frame formatCAN controller baud rate between 10Kbps-1Mbps optional software configurationUSB-CAN-(x)A series of products:CAN bus interface is not isolatedUSB-CAN-(x)B/C series:CAN bus interface with high-speed magnetic coupling isolation,isolated DC-DC power supplyCANalyst-II analyzer:CAN bus interface with high-speed magnetic coupling isolation, isolated DC-DC power supplyMaximum flow: each CAN channel for receiving the 8000/s, and send to 8000/s internal CAN send buffer capacity of 1000 per channel(sending failed automatic retransmission) CAN receive buffer capacity of 2500 per channelUSB bus powered directly, eliminating the need for an external power supply USB-CAN-(x) A series of products, the isolation moduleinsulation voltage: not isolatedUSB-CAN-(x)B Series products, isolation module insulation voltage:1000VUSB-CAN-(x)C series products, isolation module insulation voltage:2500VCANalyst-II analyzer,isolation module insulation voltage:2500VCompatibility: library similar to Luminary the company ZLG-USBCAN interface adapterOperating Temperature: -20 ~ 85 ℃Package: 1 x USB to CAN Analyzer

80M frequency of high-performance 32-bit processor with 512K flash, 128K SRAM memory space to cache information CAN 6000's.

Support advanced online programming (online writing FLASH) CAN configuration information stored in real time and status.

10K ~ 1M baud rate range of any configuration, with baud rate calculation configuration tools, one-click configuration. 10K ~ 1M baud any frame measuring range, one key-frame test and configure the baud rate.

Typical applications PC or laptop's USB interface to send and receive CAN bus network; the fast CAN network data collection, data analysis; CAN bus-USB gateway; USB interface to CAN network interface; extend the length of the CAN bus network communications; Industrial CAN network data monitoring; CAN-bus network debugging and testing;

CAN2.0A/2.0B packet analysis; iCAN protocol analysis; DeviceNet protocol analysis; CANopen protocol analysis; SAE J1939 protocol analysis.
